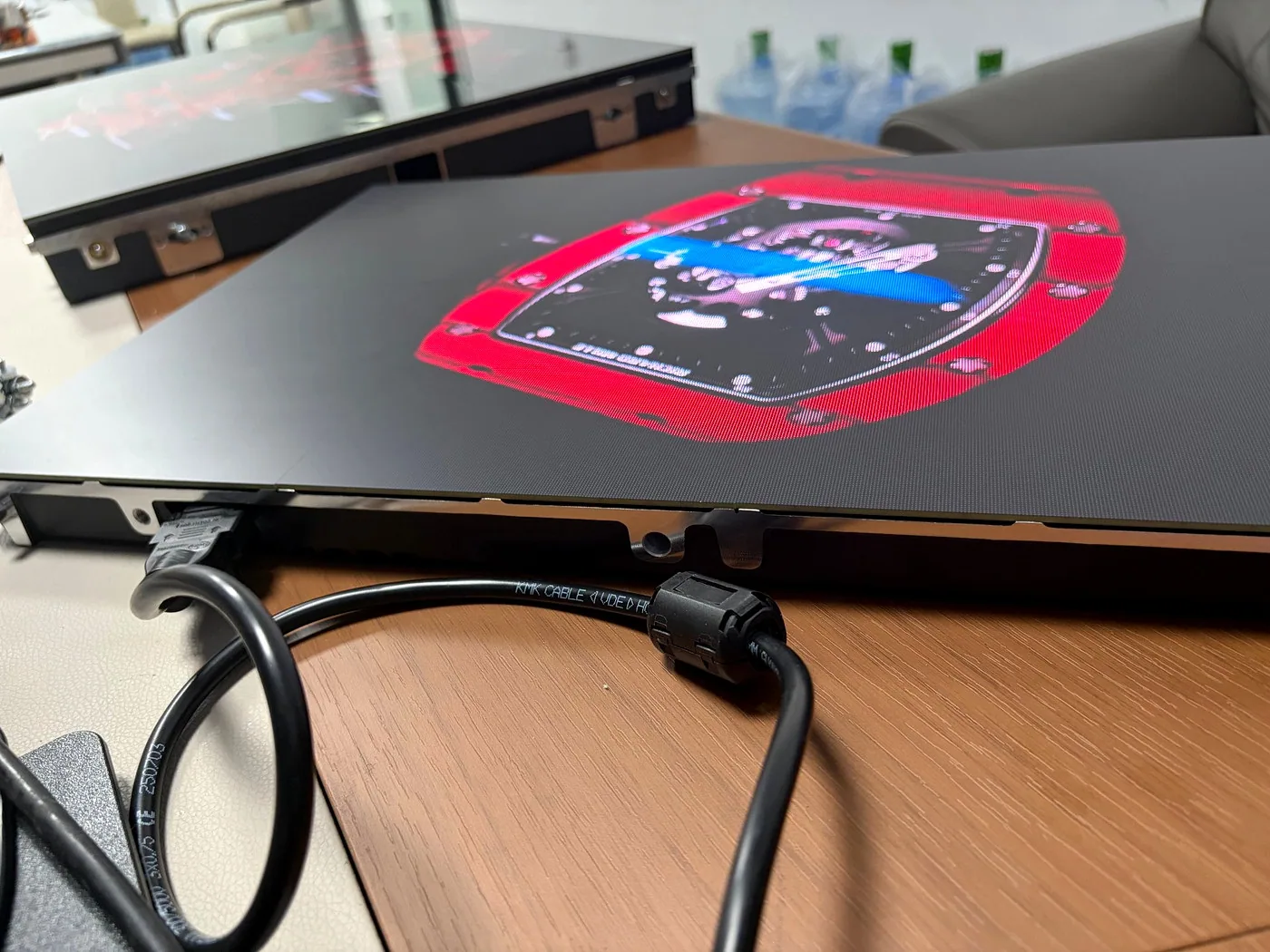

Flagship P0.9375 COB Micro LED display — 1,137,778 dots/㎡, 10,000:1 contrast and a 29.5 mm ultra-thin magnesium cabinet for control rooms.
| Pixel Pitch (mm) | 0.9375 |
| LED Type | COB Full Flip-Chip (Micro LED) |
| Module Resolution (dots) | 160×180 |
| Module Size (W×H, mm) | 150×168.75 |
| Cabinet Resolution (dots) | 640×360 |
| Pixel Density (dot/㎡) | 1,137,778 |
| Cabinet Dimension (W×H×D, mm) | 600×337.5×29.5 Ultra-thin |
| Cabinet Material | Magnesium Alloy Die-casting |
| Drive Technology | Common-Cathode |
| Contrast Ratio | 10,000:1 |
| Color Temperature | 3,000–10,000 K Adjustable |
| Refresh Rate (Hz) | ≥3,840 |
| Life Time (hours) | >100,000 |
The answers buyers ask for before a quotation on the indoor P0.95 COB fine pitch LED display — distance, brightness, lead time, warranty and how the screen is installed.
From 0.9 m or more. Our rule on every project is 1 mm of pixel pitch to 1 m of viewing distance, so the figure always follows the pitch.
Contrast ratio is 10,000:1 and refresh runs at ≥3,840 Hz, so blacks stay black in a dim room instead of washing out to grey.
≥3,840 Hz refresh with a 10,000:1 contrast ratio, so broadcast cameras and livestreams record a stable image without banding.
Each module measures 150×168.75 and carries 160×180 pixels; the LED package is COB Full Flip-Chip (Micro LED). Pixel density is 1,137,778 dots per square metre.
One square metre. Quoting and shipping are both handled per square metre, so a pilot order and a full facade order follow the same process.
Five to twenty days after deposit, depending on quantity and cabinet configuration. Urgent projects can be moved up the schedule — give us the on-site installation date and we confirm the achievable lead time before you order.
Five years on the complete screen. Each order ships with 1–3% spare parts by module count, so a failed module is a ten-minute swap rather than a shipping delay.
CE, RoHS, FCC and ETL. Test reports are available on request and can be attached to the quotation for tenders and customs clearance.
We supply steel-structure drawings, cabinet layout and wiring diagrams, guide your installers remotely, or send an engineer to site for the first installation. Front and rear service access are both available; the choice is made from the mounting depth on site.
We provide full OEM/ODM service — factory-direct pricing, MOQ 1 m².
