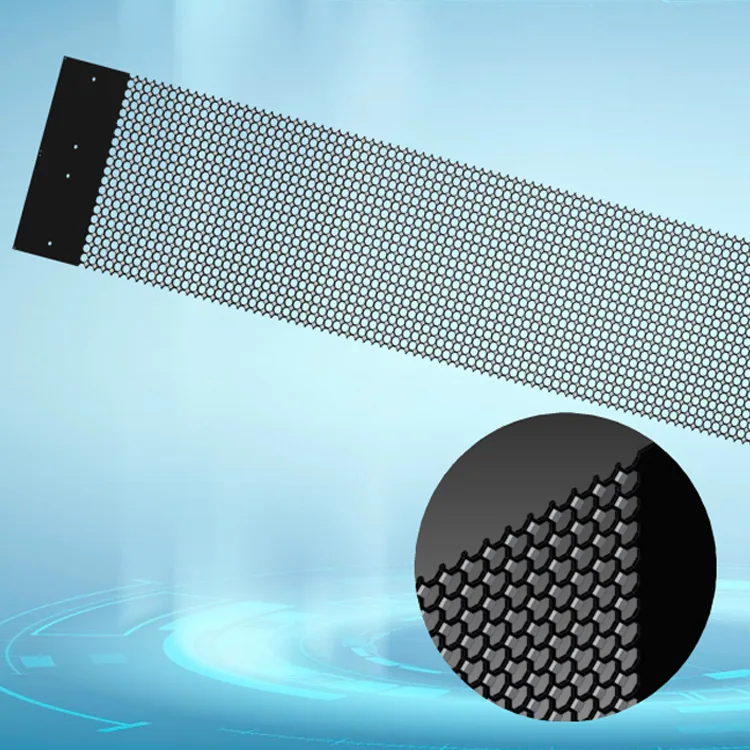

Ultra-thin, bendable transparent film LED display that adheres directly to glass — invisible when off, brilliant when on.
| Pixel Pitch (mm) | 6.67 |
| LED Type | SMD1921 |
| Module Size (W×H, mm) | 480×320 |
| Module Resolution | 72×48 |
| Drive Mode (Scan) | 1/8 |
| Pixel Density (dot/㎡) | 22,500 |
| Transparency | 78% |
| Thickness (mm) | 3 |
| Brightness (cd/㎡) | 4,000 |
| Grey Scale (bits) | 16 |
| View Angle (H°/V°) | 140°/140° |
| Max Power (W/㎡) | 350 |
| Avg Power (W/㎡) | 120 |
| Refresh Rate (Hz) | ≥1,920 |
| Weight (kg/㎡) | 4 |
| Installation | Adhesive film on glass |
| Working Temp (℃) | -20～50 |
| Life Time (hours) | >100,000 |
The answers buyers ask for before a quotation on the flexible transparent LED film — distance, brightness, lead time, warranty and how the screen is installed.
From 6.67 m or more. Our rule on every project is 1 mm of pixel pitch to 1 m of viewing distance, so the figure always follows the pitch.
Brightness is 4,000 nit with 16-bit grey scale. Maximum draw is 350 W/㎡ and average is 120 W/㎡.
≥1,920 Hz refresh with 16-bit grey scale and 4,000 nit brightness, so studio lighting and event streams record a stable image without banding.
Each module measures 480×320 and carries 72×48 pixels; the LED package is SMD1921. Pixel density is 22,500 dots per square metre.
One square metre. Quoting and shipping are both handled per square metre, so a pilot order and a full facade order follow the same process.
Five to twenty days after deposit, depending on quantity and cabinet configuration. Urgent projects can be moved up the schedule — give us the on-site installation date and we confirm the achievable lead time before you order.
Five years on the complete screen. Each order ships with 1–3% spare parts by module count, so a failed module is a ten-minute swap rather than a shipping delay.
CE, RoHS, FCC and ETL. Test reports are available on request and can be attached to the quotation for tenders and customs clearance.
We supply steel-structure drawings, cabinet layout and wiring diagrams, guide your installers remotely, or send an engineer to site for the first installation. Front and rear service access are both available; the choice is made from the mounting depth on site.
We provide full OEM/ODM service — factory-direct pricing, MOQ 1 m².
