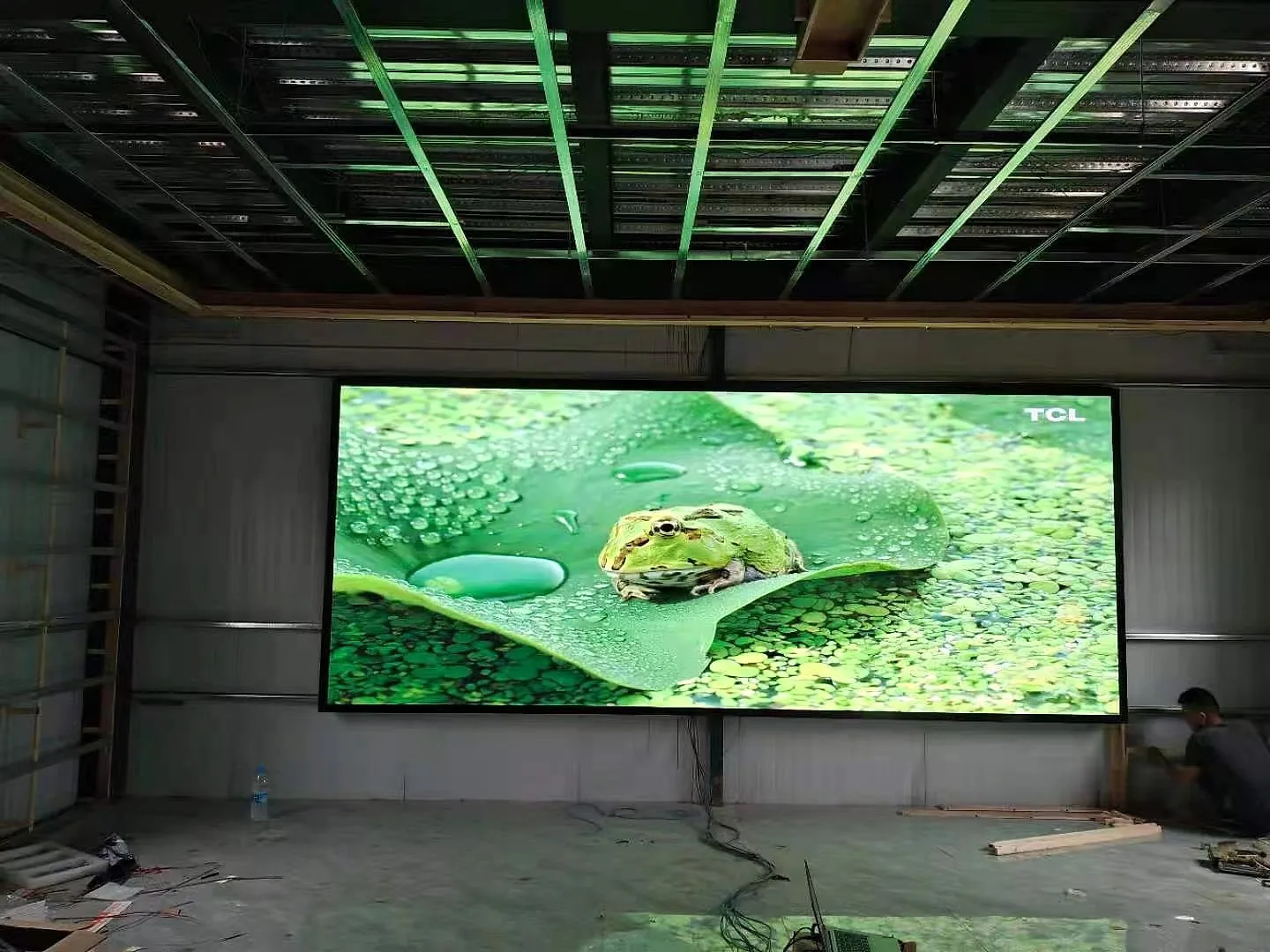

P2 indoor LED wall with 250,000 dots/㎡ density — crisp, flicker-free visuals for shopping mall media, showrooms and stage backdrops.
| Pixel Pitch (mm) | 2 |
| LED Type | SMD1515 |
| Module Size (W×H, mm) | 320×160 |
| Module Resolution | 160×80 |
| Drive Mode (Scan) | 1/40 |
| Pixel Density (dot/㎡) | 250,000 |
| Brightness (cd/㎡) | >1,200 nit |
| Grey Scale (bits) | 16 |
| View Angle (H°/V°) | 160°/160° |
| Max Power (W/㎡) | 176 |
| Avg Power (W/㎡) | 56 |
| Refresh Rate (Hz) | ≥1,920 |
| Working Temp (℃) | -20～50 |
| Life Time (hours) | >100,000 |
The answers buyers ask for before a quotation on the indoor P2 LED wall display — distance, brightness, lead time, warranty and how the screen is installed.
From 2 m or more. Our rule on every project is 1 mm of pixel pitch to 1 m of viewing distance, so the figure always follows the pitch.
Brightness is >1,200 nit with 16-bit grey scale. Maximum draw is 176 W/㎡ and average is 56 W/㎡.
≥1,920 Hz refresh with 16-bit grey scale and >1,200 nit brightness, so studio lighting and event streams record a stable image without banding.
Each module measures 320×160 and carries 160×80 pixels; the LED package is SMD1515. Pixel density is 250,000 dots per square metre.
One square metre. Quoting and shipping are both handled per square metre, so a pilot order and a full facade order follow the same process.
Five to twenty days after deposit, depending on quantity and cabinet configuration. Urgent projects can be moved up the schedule — give us the on-site installation date and we confirm the achievable lead time before you order.
Five years on the complete screen. Each order ships with 1–3% spare parts by module count, so a failed module is a ten-minute swap rather than a shipping delay.
CE, RoHS, FCC and ETL. Test reports are available on request and can be attached to the quotation for tenders and customs clearance.
We supply steel-structure drawings, cabinet layout and wiring diagrams, guide your installers remotely, or send an engineer to site for the first installation. Front and rear service access are both available; the choice is made from the mounting depth on site.
We provide full OEM/ODM service — factory-direct pricing, MOQ 1 m².
