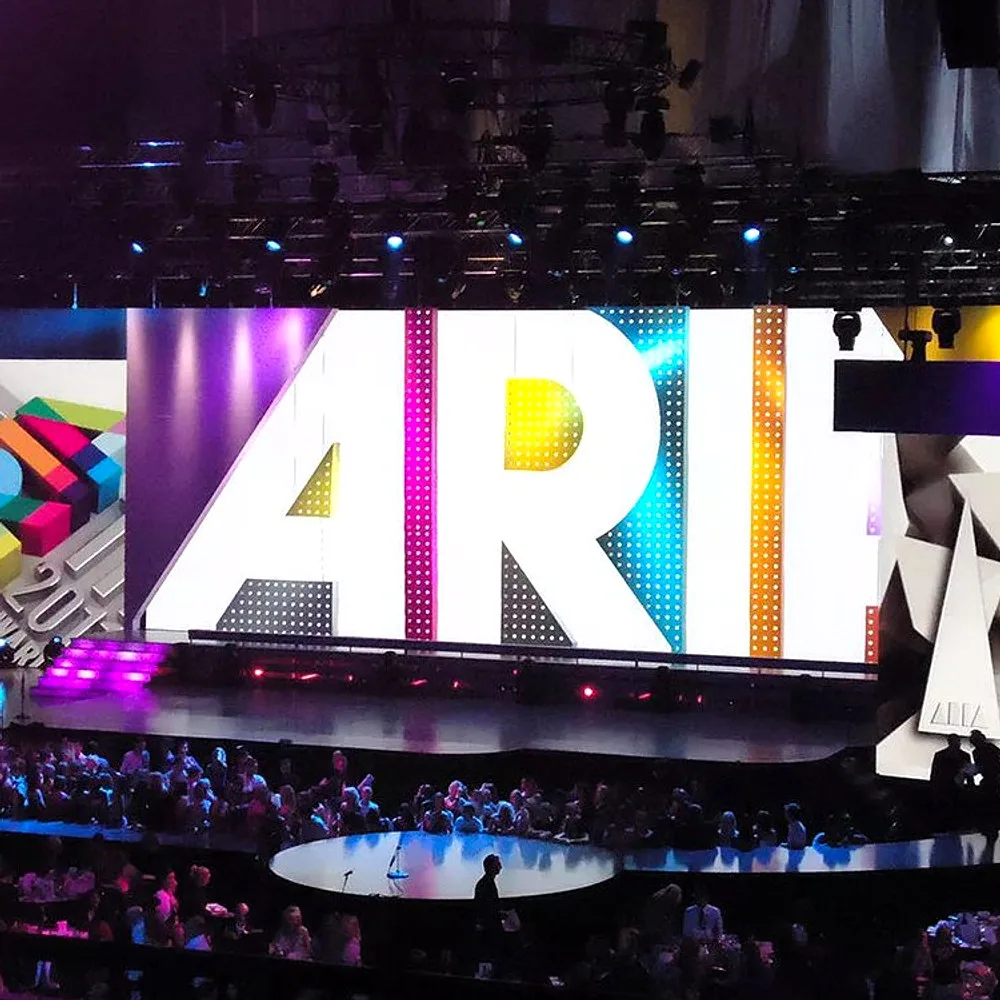

Fine-pitch P1.95 indoor rental cabinet on 500×500 mm die-cast panels — camera-friendly resolution for conference stages, XR studios and premium indoor events.
| Pixel Pitch (mm) | 1.953 |
| LED Type | SMD1010 |
| Module Size (W×H, mm) | 250×250 |
| Module Resolution | 128×128 |
| Drive Mode (Scan) | 1/32 |
| Pixel Density (dot/㎡) | 262,144 |
| Brightness (cd/㎡) | >1,000 nit |
| Grey Scale (bits) | 16 |
| View Angle (H°/V°) | 160°/160° |
| Cabinet Size (mm) | 500×500 |
| Cabinet Material | Die-casting Aluminum |
| Max Power (W/㎡) | 600 |
| Avg Power (W/㎡) | 220 |
| Refresh Rate (Hz) | 3,840 |
| Working Temp (℃) | -20～60 |
| Life Time (hours) | >100,000 |
The answers buyers ask for before a quotation on the indoor P1.95 rental LED display — distance, brightness, lead time, warranty and how the screen is installed.
From 2.0 m or more. Our rule on every project is 1 mm of pixel pitch to 1 m of viewing distance, so the figure always follows the pitch.
3,840 Hz. That is the level cameras need — no scan lines, no moiré, and slow-motion replays that hold up when the screen is on broadcast or in a livestream.
Brightness is >1,000 nit with 16-bit grey scale. Maximum draw is 600 W/㎡ and average is 220 W/㎡.
Each module measures 250×250 and carries 128×128 pixels; the LED package is SMD1010. Pixel density is 262,144 dots per square metre.
One square metre. Quoting and shipping are both handled per square metre, so a pilot order and a full facade order follow the same process.
Five to twenty days after deposit, depending on quantity and cabinet configuration. Urgent projects can be moved up the schedule — give us the on-site installation date and we confirm the achievable lead time before you order.
Five years on the complete screen. Each order ships with 1–3% spare parts by module count, so a failed module is a ten-minute swap rather than a shipping delay.
CE, RoHS, FCC and ETL. Test reports are available on request and can be attached to the quotation for tenders and customs clearance.
We supply steel-structure drawings, cabinet layout and wiring diagrams, guide your installers remotely, or send an engineer to site for the first installation. Front and rear service access are both available; the choice is made from the mounting depth on site.
We provide full OEM/ODM service — factory-direct pricing, MOQ 1 m².
