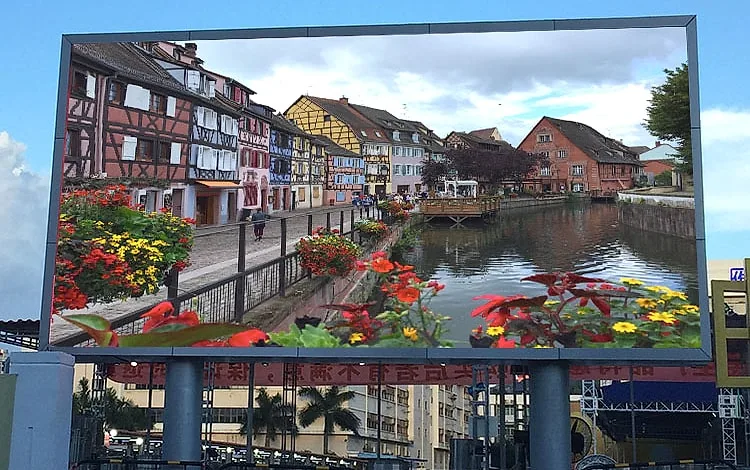

Ultra HD P2.5 outdoor small-pitch screen with 160,000 dots/㎡ — close-viewing brightness and detail for premium facades and street-level media.
| Pixel Pitch (mm) | 2.5 |
| LED Type | SMD1921 |
| Module Size (W×H, mm) | 320×160 |
| Module Resolution | 128×64 |
| Drive Mode (Scan) | 1/16 |
| Pixel Density (dot/㎡) | 160,000 |
| Brightness (cd/㎡) | ≥5,000 nit |
| Grey Scale (bits) | 16 |
| View Angle (H°/V°) | 160°/160° |
| Max Power (W/㎡) | 800 |
| Avg Power (W/㎡) | 270 |
| Refresh Rate (Hz) | 3,840 |
| Protection (Front/Rear) | IP65 / IP54 |
| Working Temp (℃) | -20～60 |
| Life Time (hours) | >100,000 |
The answers buyers ask for before a quotation on the outdoor P2.5 LED screen — distance, brightness, lead time, warranty and how the screen is installed.
From 2.5 m or more. Our rule on every project is 1 mm of pixel pitch to 1 m of viewing distance, so the figure always follows the pitch.
Brightness is ≥5,000 nit with 16-bit grey scale. Maximum draw is 800 W/㎡ and average is 270 W/㎡.
The front face is sealed to IP65 and the rear to IP54. Working temperature is -20–60 °C, which covers rain, dust and the swing a facade sees over a year.
Each module measures 320×160 and carries 128×64 pixels; the LED package is SMD1921. Pixel density is 160,000 dots per square metre.
One square metre. Quoting and shipping are both handled per square metre, so a pilot order and a full facade order follow the same process.
Five to twenty days after deposit, depending on quantity and cabinet configuration. Urgent projects can be moved up the schedule — give us the on-site installation date and we confirm the achievable lead time before you order.
Five years on the complete screen. Each order ships with 1–3% spare parts by module count, so a failed module is a ten-minute swap rather than a shipping delay.
CE, RoHS, FCC and ETL. Test reports are available on request and can be attached to the quotation for tenders and customs clearance.
We supply steel-structure drawings, cabinet layout and wiring diagrams, guide your installers remotely, or send an engineer to site for the first installation. Front and rear service access are both available; the choice is made from the mounting depth on site.
We provide full OEM/ODM service — factory-direct pricing, MOQ 1 m².
